Author Topic: Digital Dash (no-go)  (Read 3441 times)

0 Members and 1 Guest are viewing this topic.

GPChief

  • Site Sponsor
  • Boosted
  • *
  • Offline Offline
  • Posts: 1231
Digital Dash (no-go)
« on: May 16, 2010, 11:35:41 PM »

Today I tried to install a digital dash into my TSTE. It worked but with issues. I took it back out due to these issues.

The issues were:
Once installed some mysterious stuttering / stumbling happened with the motor.
Could not see the MPH when lights were off.  Once lights were turned on you could see it fine. (note I upgraded all dash lights to LED hoping to solve this issue).

Guess I'll be installing a HUD...........eventually.
Logged
2004 GTP -  3.8 Blown - Only modding for MPG.
1997 GTP  - 3.8 Blown - Too many mods to list.
1996 GTP - 3.4 DOHC - Twin to my 1997.
1995 SE - soon to be a 3.8 turbo car.
1990 TSTE x 2 white cloth
1990 TSTE x 1 maroon leather
1990 TGP - 5 speed.

stockgp

  • TGP Driver
  • *
  • Offline Offline
  • Posts: 94
Re: Digital Dash (no-go)
« Reply #1 on: May 31, 2010, 12:28:19 PM »

not to insult your intelligence, but you did check to see if the wiring was the same between the two, right?

i remember i swapped a digital cluster into my first gp, and the speedo did not light up without the lights on.  leads me to believe the illumination wiring is different
Logged

NTRCOOL

  • Spooling
  • *
  • Offline Offline
  • Posts: 280
Re: Digital Dash (no-go)
« Reply #2 on: September 27, 2010, 12:32:01 PM »

It's strange that the motor was stumbling after you put the cluster in. Aside from that issue was thinking about running a jumper wire to supply power for the speedo for when the lights are off. I wonder if there is a schematic in a manual that would help make a safe jump for that cluster?? I could ask the W-body guys or Have you joined GMforum yet I coud ask them as well.
Logged
NTRCOOL

1989 RED TGP interior gutted for racing, hard top, added a wing from GTP, MSD ignition, chip from flybynite, K&N air filter.
1990 RED TGP leather intr, moon roof, needs just bout everything
1990 BLACK TGP cloth intr, aftrmrkt moon roof
1977 Chevy Caprice areo back coupe soon to have Cadillac 500cuin.
1980 olds 98 coupe
1993 Ford Festiva GL
1998 Jeep Cherokee XJ, 3" Rough country lift
1987 Buick LeSabere T-Type
1990 Cadillac brougham

DefEddie

  • Checking Engine
  • ***
  • Offline Offline
  • Posts: 43
Re: Digital Dash (no-go)
« Reply #3 on: November 21, 2012, 11:07:12 PM »

Hehe,I ain't skeered to bump a 2yo post.

Just curious what digi cluster you used?
I've put one together for my fiero using a 95 safari cluster.
Did you just bolt in another w-body cluster that was digi?
Logged

GPChief

  • Site Sponsor
  • Boosted
  • *
  • Offline Offline
  • Posts: 1231
Re: Digital Dash (no-go)
« Reply #4 on: November 22, 2012, 03:33:53 AM »

Yes, it was a digital cluster from anouther 1st GEN GP.  Will be installing a HUD in the next few months.
Logged
2004 GTP -  3.8 Blown - Only modding for MPG.
1997 GTP  - 3.8 Blown - Too many mods to list.
1996 GTP - 3.4 DOHC - Twin to my 1997.
1995 SE - soon to be a 3.8 turbo car.
1990 TSTE x 2 white cloth
1990 TSTE x 1 maroon leather
1990 TGP - 5 speed.

DefEddie

  • Checking Engine
  • ***
  • Offline Offline
  • Posts: 43
Re: Digital Dash (no-go)
« Reply #5 on: November 26, 2012, 07:30:30 PM »

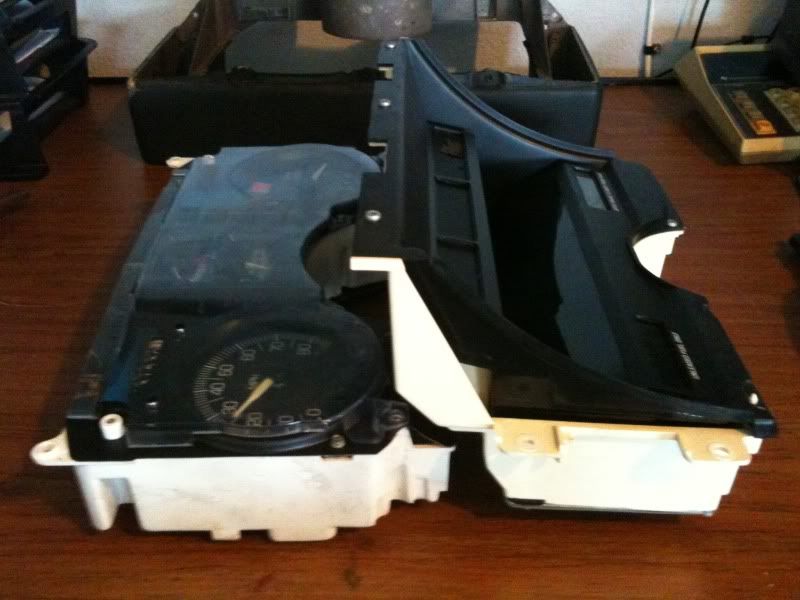

I gutted a fiero clister for frame,then cut down the digi frame and plastiwelded it into the fiero frame.
Until someone else pointed it out though,I didn't realize the setup had no idiot lights incorporated and they were all divorced in a seperate housing that I couldn't really utilize.

Shelved it until today,found a bunch of LEDs laying around and had some ideas.
Just need to do a little paint and final touchups to prep the wiring and i'll install it in a parts car to verify.

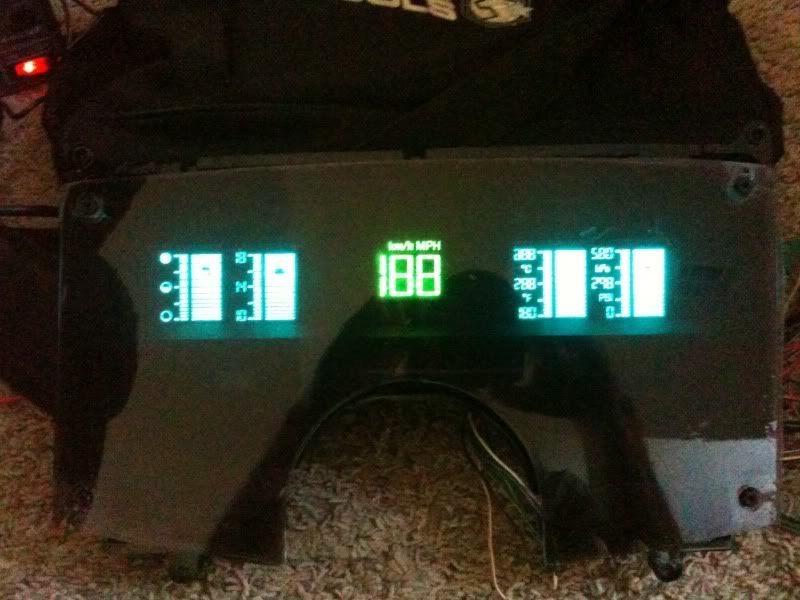

Here's what I started and ended with. No pics yet with idiot lights upgrade.


Logged

GPChief

  • Site Sponsor
  • Boosted
  • *
  • Offline Offline
  • Posts: 1231
Re: Digital Dash (no-go)
« Reply #6 on: November 27, 2012, 10:11:29 AM »

Looks good.  Looks like a cutlass dash
